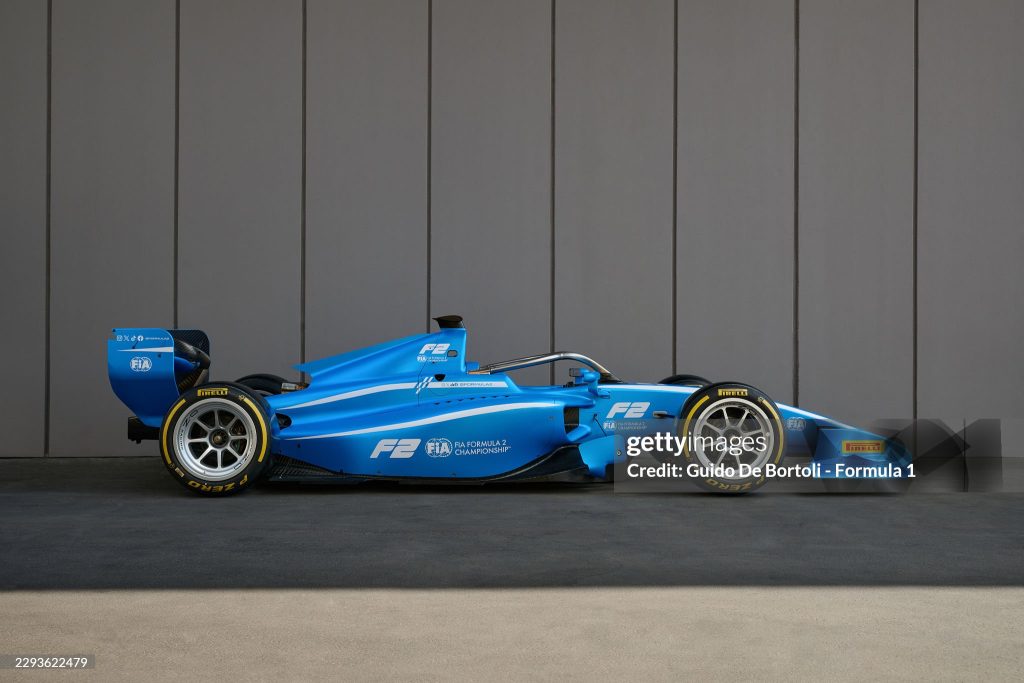

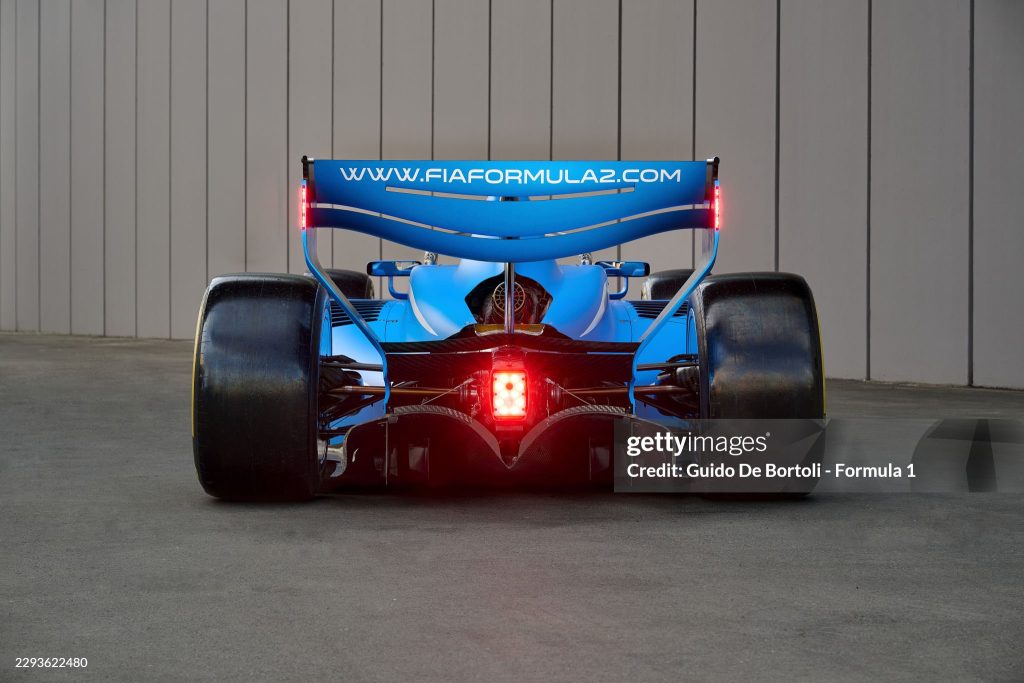

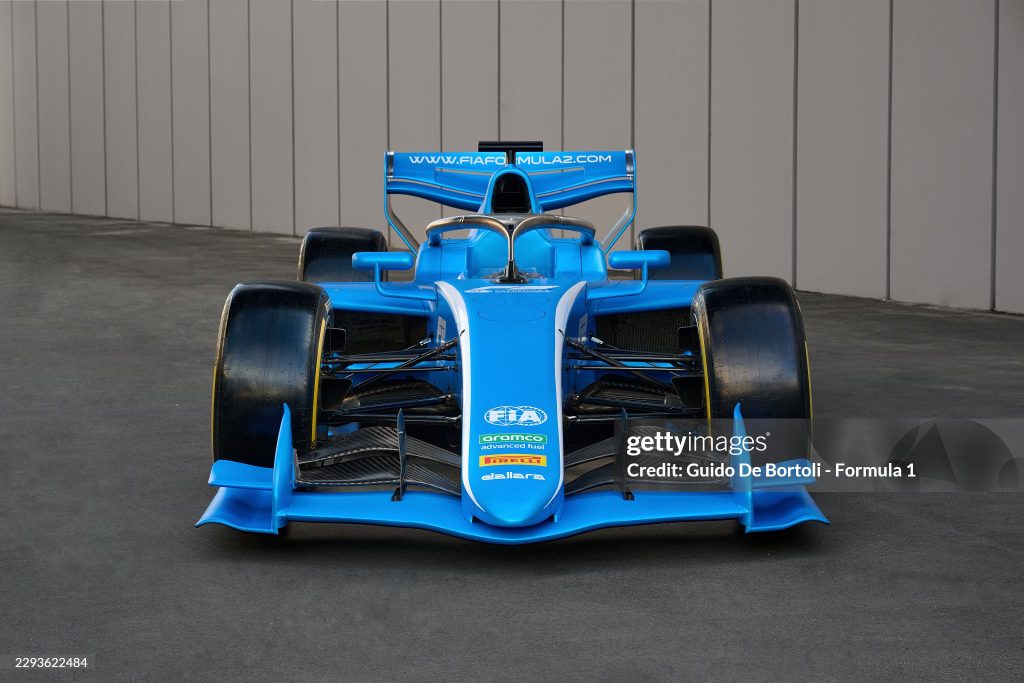

The FIA Formula 2 Championship has presented its new challenger for the 2027, 2028, and 2029 FIA F2 seasons during a special unveiling in the Formula 1 paddock at the Autodromo Nazionale Monza. Building on the success of the current generation, the F2 2027 car represents a significant evolution designed to further strengthen the Championship’s role as the final step on the pathway to Formula 1.
The car retains the 2026 Dallara chassis to help manage costs, but features redesigned front and rear wings. The improved aerodynamic characteristics will enable closer racing and enhance the drivers’ ability to closely follow the car ahead, while the styling brings it closer to the latest F1 design philosophy.
Powering the car is the proven 3.4-litre turbo-charged Mecachrome engine, which continues to run on advanced sustainable fuel supplied by Aramco, first successfully introduced to the series in 2025. Pirelli, F2’s exclusive tyre supplier since 2017, will continue to provide tyres specifically developed for the championship.
One of the key technical evolutions introduced for the 2027 generation is the addition of an on-board starter. To accommodate this feature, Hewland has developed an evolution of the current gearbox, enabling the integration of the on-board starter system.
The F2 2027 car retains the FIA’s 2024 specifications for braking performance, steering effort and cockpit ergonomics, ensuring the car remains accessible to a broad range of drivers. The Marelli electronic and hydraulic systems package also remain the same, including the EM Motorsport Marshalling system.
The 2027 FIA Formula 2 car – DETAILS
Dimensions
Overall length: 5284 mm
Overall width: 1900 mm
Overall height: 1097 mm (including FOM roll hoop camera)
Wheelbase: 3135 mm
Engine
V6 – 3.4 litre single turbo charged Mecachrome engine.
Rated to 620 HP @ 8750 rpm.
Fly by wire accelerator system.
Rebuild after 8000 km.
Maximum Torque 570 Nm @ 6000 rpm.
Monocoque and Bodywork
Survival cell – Sandwich Carbon/aluminium honeycomb structure/Zylon anti-intrusion panels made by Dallara.
Front and rear wing – Carbon structures made by Dallara.
Bodywork – Carbon – Kevlar honeycomb structures made by Dallara.
Safety standards
Full FIA F1 2024 safety standards.
Titanium Halo F1 specification.
Gearbox
6-speed longitudinal Hewland sequential gearbox.
Electro-hydraulic command via paddle shift from steering wheel.
ZF SACHS Carbon clutch.
On-board starter.
Non hydraulic ramp differential, externally adjustable.
Steering system
Non-assisted rack and pinion steering system – FIA 2024 specification.
New XAP steering wheel with dashboard, gear change, clutch and DRS paddles, marshalling & VSC display.
Electronic features
New Marelli Marvel VCU 480 ECU/GCU including data logging system.
New Marelli FOX 442 power supply management unit.
CAN data acquisition pre-equipment.
Beacon receiver.
F1 type VSC & Marshalling system.
Suspension
Double steel wishbones, pushrod operated, twin dampers and torsion bars suspension (Front) and spring suspension (Rear).
Adjustable ride height, camber and toe.
Two way (F) / Four way (R) adjustable Koni dampers.
Adjustable anti-roll bar (Front/Rear).
Wheels and tyres
O.Z. Racing magnesium rims.
18” x 12” front wheel dimension.
18” x 13.7” rear wheel dimension.
F2 specific Pirelli slick / wet tyres.
TPMS Texense (Tyre Pressure Monitoring System).
Brakes
6 pistons monobloc Brembo callipers.
Carbone Industrie carbon-carbon brake discs and pads.
Fuel
Aramco advanced sustainable fuel.
ATL FT5 fuel cell 125 litres – FIA standard
DRS
Hydraulic DRS activation.
Extinguisher system
New FEV system (electrically operated), in accordance with the latest FIA standards.
